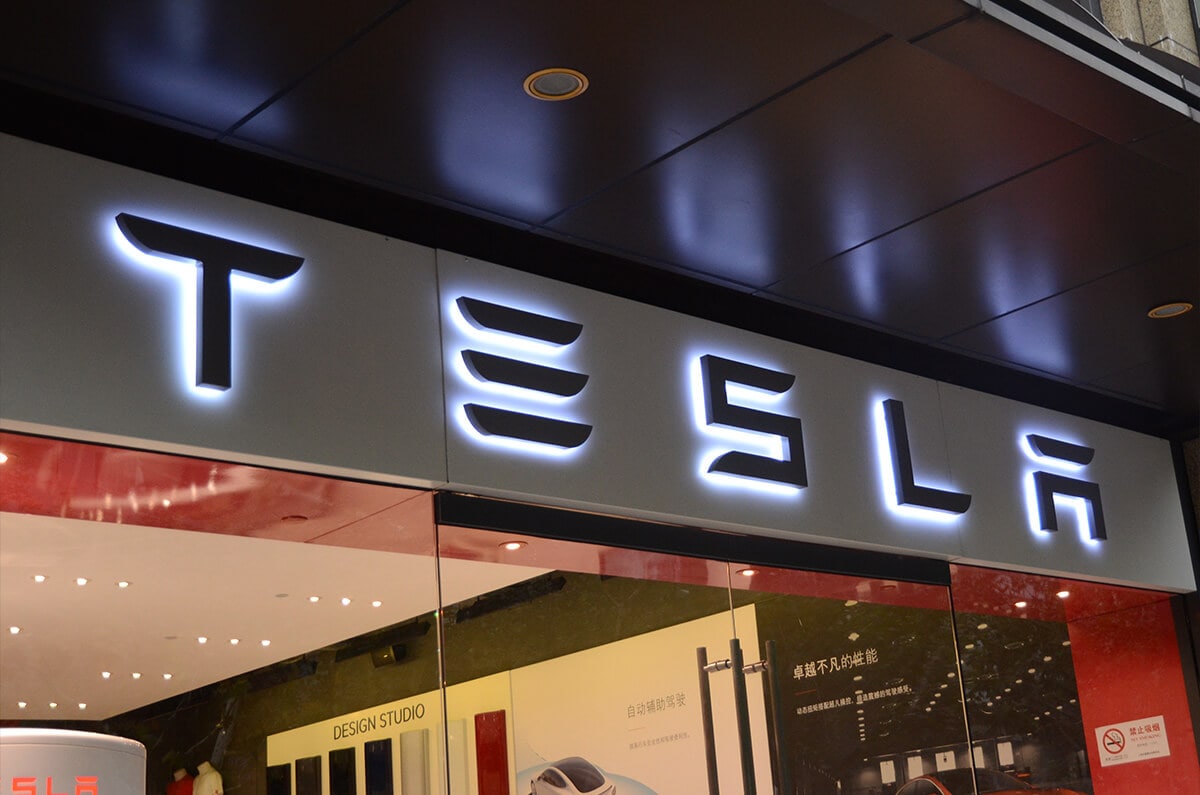

ABOUT OUTDOOR LED BACKLIT SIGNS
Plan your project around outdoor LED backlit signs.
As a professional sign factory, we build custom outdoor LED backlit signs to your design: each piece with its own light source and circuit, fabricated to shape with LEDs inside and an opal acrylic back-panel toward the wall, for a soft halo, built to weather the years in 304 or marine-grade 316 stainless steel, UL Listed and backed by a 3-year limited warranty.
Once you approve the shop drawings, we start production. Production usually runs about 15 business days, and DHL door-to-door shipping then takes about a week, for a total of about 4 weeks from drawing approval to delivery.
What are outdoor LED backlit signs?
Outdoor LED backlit signs are custom outdoor backlit signs built to live through sun, rain, and temperature swings, and each separate piece has its own light source and its own circuit, made as a hollow metal sign shell (called a channel in the U.S.), rather than cut from solid metal. The face is laser cut, and the returns (the side walls) are fabricated to your shape and laser welded to the face into one hollow piece. The metal sign shell is open toward the wall, and that opening is closed with an opal acrylic back-panel that lets the light through. The Luxury model mounts flush against the wall by default and can also mount off the wall, while the Common model always mounts off the wall. Whenever a sign mounts off the wall, we supply stainless steel tube spacers. In both models, the low-voltage LEDs inside shine through the back-panel onto the wall, where the light forms a soft halo in the shape of the sign. Lights off, it reads as a crisp metal sign. Lights on, the shape is traced on the wall in a soft halo. What sets outdoor LED backlit signs apart is the outdoor build: we default to 304 stainless steel and move to marine-grade 316, mounting hardware included, for coastal or high-salt sites, the LEDs are waterproof by default and upgraded to IP67 in rainy regions, we plan drainage holes and sealed edges against light leaks, and for exposed or extreme-climate sites we lean to the Common model for its better weather resistance. The same build works indoors too, so if the sign will live inside see indoor LED backlit signs. Letters, logos, and shapes can all be built as outdoor LED backlit signs. The same build makes LED backlit logo signs, LED backlit letters, and, with deeper returns, 3D LED backlit signs.
Common applications and related pages
Outdoor signage is the first thing customers see, so it does a lot of the work of getting them through the door. Storefronts, facades, showrooms, and exterior name signs all rely on outdoor LED backlit signs to read in daylight and glow after dark. This is signage that has to look sharp from the sidewalk and the road alike. Here are a few typical industries, and you can see all the industries we serve.
A well-made outdoor sign keeps your brand visible and legible long after dark. Signs do bring customers: in a national survey, 76% of consumers had walked into a store they had never visited before because of its signage (per FedEx Office)1.
What we need for your custom project
- Design file
- A vector file works best. A high-resolution raster or an AI-generated flat image is enough for a quote. Skip software auto-tracing: it loses much of the detail, so send the high-resolution raster as it is.
- Property sign rules
- Before any design work starts, check the sign rules with your landlord or property manager: the allowed size range, any finish or color requirements, light color temperature limits, and the required mounting method. If the property has written sign criteria, send them to us, and both the quote and the shop drawings will follow them.
- Sizes
- Stay within the sign size range your property allows, then size the letters to the viewing distance: as a rule of thumb, a letter stays readable up to about 120 times its height, so a 1 in (25 mm) letter reads clearly within about 10 ft (3 m). Outdoors the read is often from farther away, so size up: in a national shopper study, 90.9% agreed that sign letters need to read clearly from the road (per BrandSpark)3.
- Wall
- Send a photo of the wall where the sign will hang. Wall color and texture affect how bright the reflected halo reads (especially on the Common model), so the photo helps us plan the mounting method and advise on the light color temperature.
- Power
- By default, we use Mean Well power supplies. They accept 90 V to 264 V AC input. If the power available at your site is different or unusual, tell us before production, so we can match the right power supply for you.
- Site conditions
- Tell us about the outdoor site so we build for it. On the weather, four things matter: whether it is a rainy area, whether it hits extreme heat, whether it gets hard winter freezes, and whether it is dusty or sandy. Also let us know if the site is coastal, which steers the metal sign shells and all the mounting hardware to marine-grade 316. On wiring, tell us whether we can plan the cable route in-wall or behind the wall. And where should the power supply sit, so it stays accessible and sheds heat?
- Finish
- Choose from a full range:
- Mirror polished
- Brushed
- Vibration finish
- Painted or powder-coated color, in gloss, semi-gloss, or matte (tell us the exact color and we color-match to Pantone, RAL, Sherwin-Williams (SW), or Matthews Paint (MP) swatches)
- Plated metal colors (gold, black titanium, copper, and more)
- Special effects such as wood grain, antique, and marble look
- Light color
- White: 3000K warm white, 4000K natural white, or 6000K white
- Red, yellow, blue, or green
- Color-changing: RGB, or RGBW (RGB plus a dedicated white channel)
- Another single color or a specific color temperature: tell us, and we set it up for you.
Light colors are approximate and are not matched to color swatches.
Choosing your model: Luxury or Common
Outdoor LED backlit signs come in two models, the Luxury model and the Common model, and they differ in how the halo forms. On the Luxury model the acrylic back-panel is partly exposed outside the metal sign shell, and the light leaves from that exposed edge straight onto the wall, which is why it mounts flush against the wall by default and gives a brighter, wider halo. On the Common model the back-panel sits fully inside the metal sign shell, the halo forms by reflection off the wall, and the sign has to stand off the wall for that to happen. For exposed, extreme-climate sites we usually recommend the Common model for its better weather resistance. See the point-by-point comparison in Compare below.
Luxury model
- Opal acrylic back-panel partly exposed, with a stronger halo
- Mounts flush against the wall by default, or off the wall on stainless steel tube spacers
- Suits premium storefronts and brand walls
View Luxury Model Common model
- Opal acrylic back-panel hidden inside the metal sign shell
- Must mount off the wall, on 13/16 in (20 mm) stainless steel tube spacers by default
- Suits storefronts, large signs, curved walls, and outdoor sites
View Common Model Installation and electrical
Installation
- Installation is arranged on your side: we recommend a professional sign installer, with an electrician making the final electrical connection (you can find both on Yelp or Google Maps). Professional installation gives the sign a longer life, a better look on the wall, and safer, more reliable wiring. The job covers drilling the wall, setting stud bolts, routing wires, placing the power supply, and low-voltage wiring.
- We supply a 1:1 mounting template, the wiring diagram, the installation instructions, and the mounting hardware, such as stud bolts and a Mean Well power supply.
- If the wall can’t take many holes, we can mount all the pieces on a metal backer box at the factory, so the sign goes up as one piece.
- The Common model must mount off the wall for the reflected halo to form, so we include stainless steel tube spacers, 13/16 in (20 mm) long by default, which also hide the studs and wiring. If you want a different off-wall distance, tell us in advance. The Luxury model mounts flush against the wall by default, and when it mounts off the wall, it uses the same stainless steel tube spacers.
Power supply
- The power supply usually sits behind the wall or above the ceiling, in a spot that sheds heat and stays accessible for service.
- For U.S. projects, we plan a 12V DC low-voltage system with a UL Listed Mean Well power supply before production. The wiring must follow our wiring diagram exactly, so each letter’s load matches its power supply, and the sign must never be connected to a supply that does not match the power supply’s input.
Outdoor planning
- 304 stainless steel by default. For a coastal or near-coast site, tell us: the metal sign shells and all the mounting hardware are then made in marine-grade 316 stainless steel.
- Outdoor signs use waterproof LEDs by default. For rainy regions we upgrade them to IP67 and plan drainage holes at the bottom of the metal sign shells, plus edge detailing that keeps the halo outline clean.
Outdoor LED backlit signs FAQ notes
- How long will an outdoor LED backlit sign last?
- It is built for the long haul outdoors: the metal sign shells are 304 stainless steel by default, or marine-grade 316, mounting hardware included, on coastal or high-salt sites, the LEDs are waterproof, and the finish is specified for outdoor exposure. Planned and installed well, an outdoor sign keeps its even glow for years, and every set carries a 3-year limited warranty.
- Which metal do you build an outdoor sign in?
- 304 stainless steel by default, and marine-grade 316, mounting hardware included, for coastal or high-salt sites (see stainless steel backlit signs). For large signs where weight matters, we can build in aluminum on the Common model (see aluminum backlit signs). Inside large signs, we set reinforcing ribs to the sign shape to keep the faces flat and prevent oil canning. We confirm the metal in the shop drawings.
- Can an outdoor sign also be used indoors?
- Yes. The same build works indoors, where there is no weather to plan around, so the finish and light-color choices open up further. For interior applications and planning, see indoor LED backlit signs.
- How do you keep an outdoor sign weatherproof against rain?
- Outdoors, the LEDs are waterproof by default, and in rainy regions we upgrade them to IP67 and plan drainage holes at the bottom of the metal sign shells, plus sealed edge detailing against light leaks, so water drains and the halo outline stays clean through the rainy season. For heavy-rain or extreme-climate sites, tell us up front and we build the sealing and drainage around it.
- What about power and installation outdoors?
- Outdoor signs run on waterproof low-voltage 12V DC LEDs and an outdoor-rated, UL Listed Mean Well power supply by default. A licensed local electrician makes the final connection to code, wired exactly as shown on our wiring diagram. We plan the power supply location, wire routing, and heat dissipation before production.
