Backlit Monument Signs: Letters and Logos

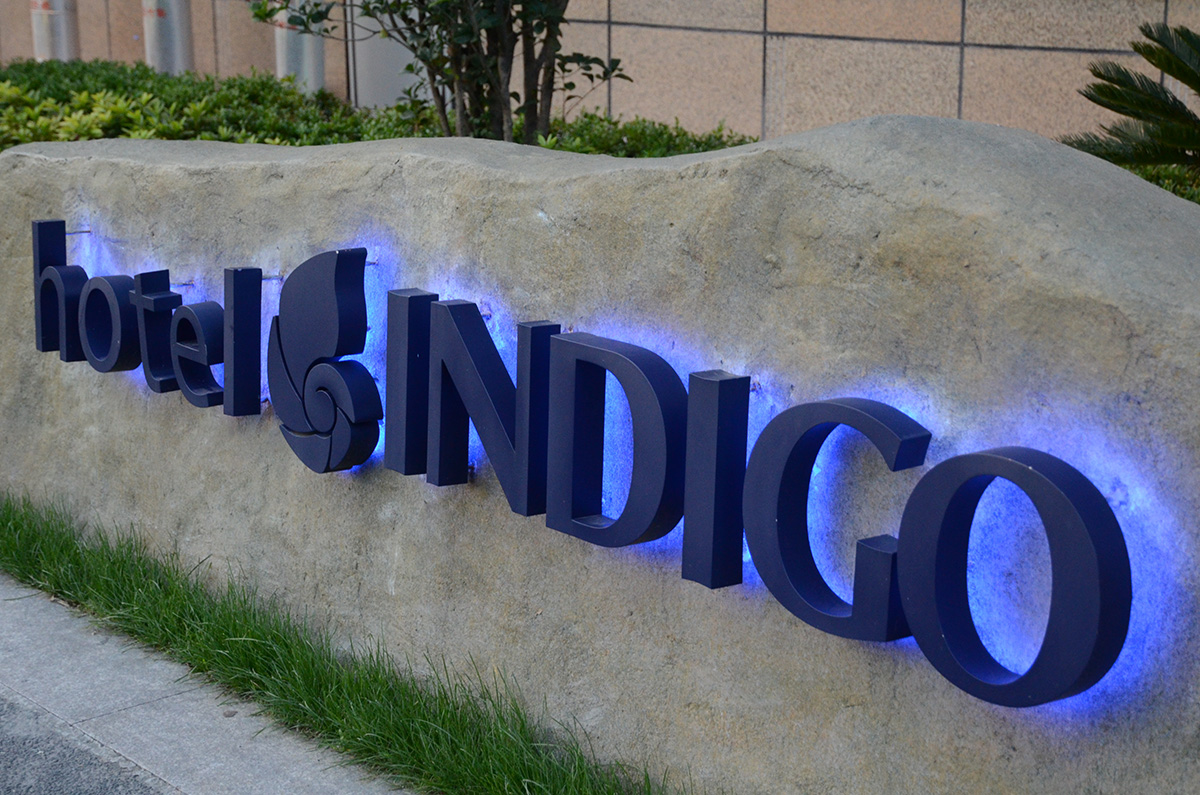

What are backlit monument signs?

Backlit monument signs are custom illuminated signs for a ground-level entrance, and each separate piece has its own light source and its own circuit, made as a hollow metal sign shell (called a channel in the U.S.), rather than cut from solid metal. The face is laser cut, the returns are fabricated to your shape, and the two are laser welded into one hollow piece. The metal sign shell is open toward the base, and that opening is closed with an opal acrylic back-panel that lets the light through. The Luxury model mounts flush against the base face by default and can also mount off the face, while the Common model always mounts off the face. Whenever a sign mounts off the face, we supply stainless steel tube spacers. In both models, the low-voltage LEDs inside shine through the back-panel onto the base, where the light forms a soft halo in the shape of the sign. Lights off, it reads as a crisp metal sign. Lights on, the shape is traced in a soft halo. Here is the important part: a monument sign has two parts, the base and the illuminated sign on top, and we build the illuminated part, the letters and logos, while your local contractor builds the masonry, stone, or concrete base. We ship the mounting pattern and studs so the letters and logos drop onto the finished base and line up. Letters and a graphic logo can both be built this way, and large logos run in aluminum on the Common model to cut weight. For a sign mounted high on the building itself, see backlit building facade signs. The same build makes LED backlit logo signs, LED backlit letters, and, with deeper returns, 3D LED backlit signs.

Common applications and related pages

A monument sign marks the entrance, so it is often the first thing a visitor reads from the road or the driveway. Churches and community buildings, hospital campuses, auto dealerships, and real estate or business parks all use backlit monument signs to be found at the turn-in and to glow after dark. This is ground-level signage that has to read from a moving car. Here are a few typical industries, and you can see all the industries we serve.

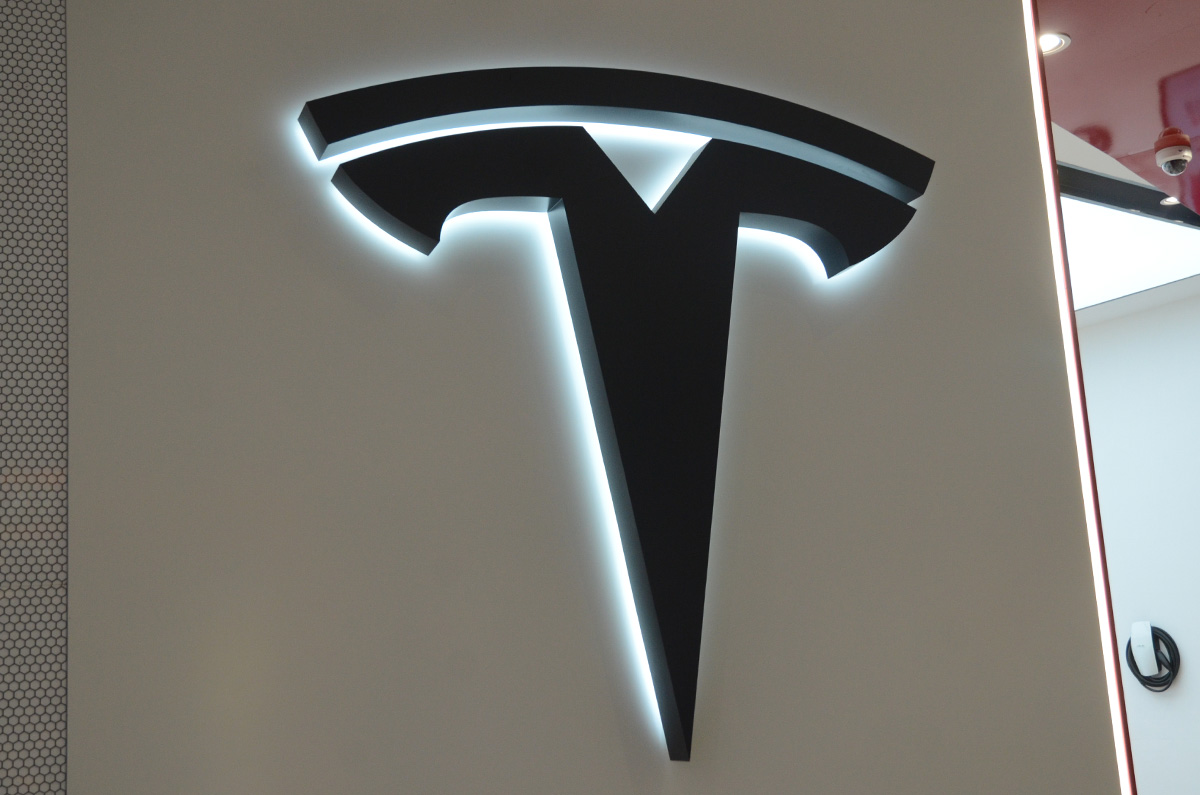

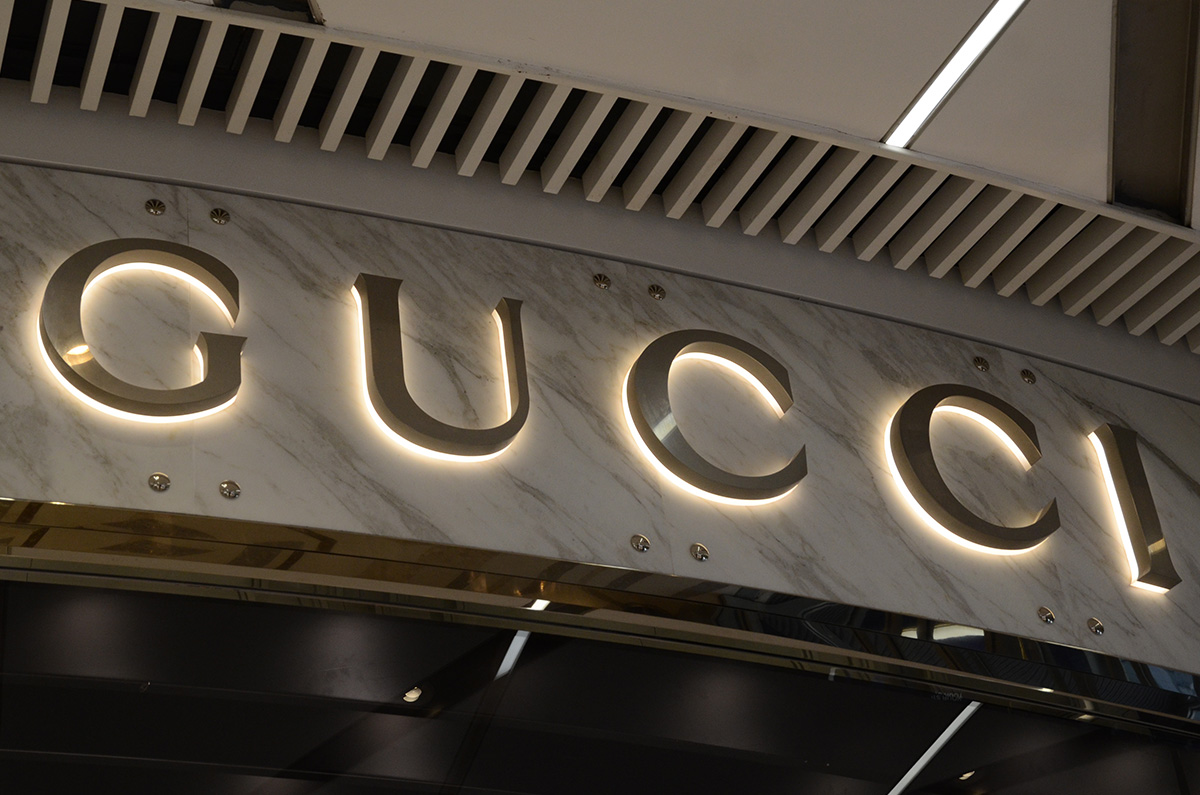

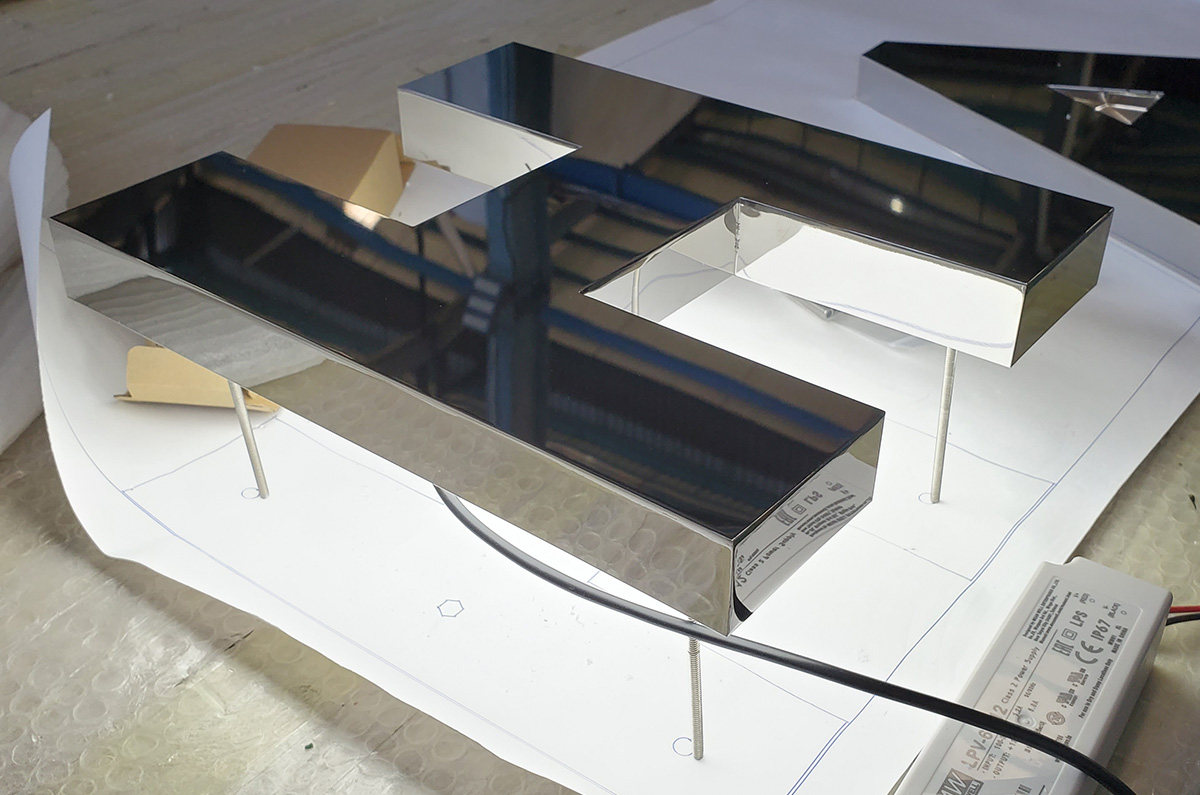

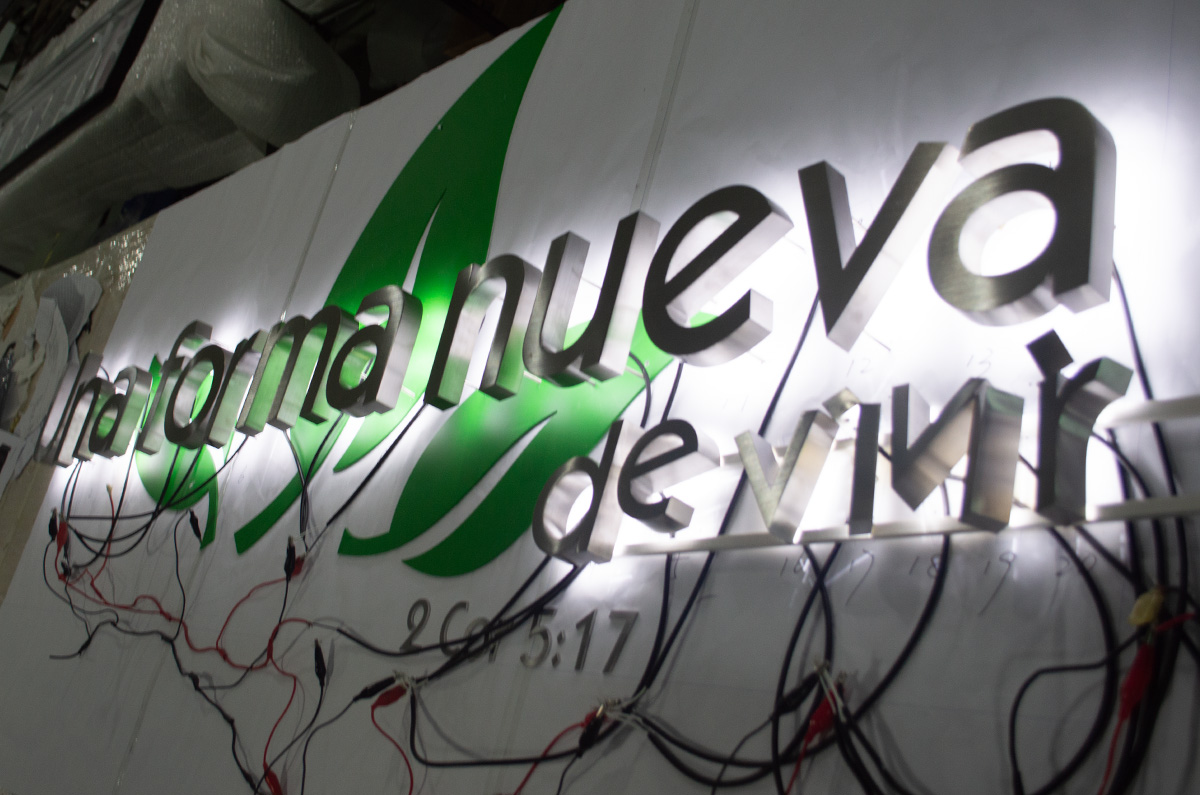

Backlit church name signsDignified entrance name signs, built to last.Backlit signs for hospitalsCampus entrance signs found from the road.Backlit signs for auto dealershipsRoadside dealership signs that stand out in traffic.Backlit signs for real estate brokeragesEntrance signs for offices and communities.

What we need for your custom project

Design file

A vector file works best. A high-resolution raster or an AI-generated flat image is enough for a quote. Skip software auto-tracing: it loses much of the detail, so send the high-resolution raster as it is.

Property sign rules

Entrance signage is often governed by local sign codes, an HOA, or a business-park rule set, so check the size range, any finish or color limits, light color temperature, and the required mounting before design starts. If there are written sign criteria, send them to us, and both the quote and the shop drawings will follow them.

Sizes

Stay within the sign size range your property and code allow, then size the letters to the viewing distance: as a rule of thumb, a letter stays readable up to about 120 times its height, so a 1 in (25 mm) letter reads clearly within about 10 ft (3 m). A monument sign is read from the road and the driveway, so size the letters up: in a national shopper study, 90.9% agreed that sign letters should be large enough to read from the road (per BrandSpark)³.

Base

Tell us about the base your contractor will build: the material (stone, brick, metal, or concrete), the face size, and the orientation. That sets the mounting pattern and how the letters and logos sit, so the finished sign lines up on the base.

Power

By default, we use Mean Well power supplies. They accept 90 V to 264 V AC input. Tell us whether a conduit already runs to the base, and if the power available at your site is different or unusual, tell us before production, so we can match the right power supply for you.

Site conditions

Tell us about the outdoor site so we build for it. On the weather, four things matter: whether it is a rainy area, whether it hits extreme heat, whether it gets hard winter freezes, and whether it is dusty or sandy. Also let us know if the site is coastal or on a salted roadside, which steers the metal sign shells and all the mounting hardware to marine-grade 316. On wiring, tell us whether the cabling can route up through the base. And where should the power supply sit, so it stays accessible and sheds heat?

Finish

Choose from a full range:

• Mirror polished
• Brushed
• Vibration finish
• Painted or powder-coated color, in gloss, semi-gloss, or matte (tell us the exact color and we color-match to Pantone, RAL, Sherwin-Williams (SW), or Matthews Paint (MP) swatches)
• Plated metal colors (gold, black titanium, copper, and more)
• Special effects such as wood grain, antique, and marble look

Light color

• White: 3000K warm white, 4000K natural white, or 6000K white
• Red, yellow, blue, or green
• Color-changing: RGB, or RGBW (RGB plus a dedicated white channel)
• Another single color or a specific color temperature: tell us, and we set it up for you.

Light colors are approximate and are not matched to color swatches.

Choosing your model: Luxury or Common

Backlit monument signs come in two models, the Luxury model and the Common model, and they differ in how the halo forms. On the Luxury model the acrylic back-panel is partly exposed outside the metal sign shell, and the light leaves from that exposed edge straight onto the base face, which is why it mounts flush against the base face by default and gives a brighter, wider halo. On the Common model the back-panel sits fully inside the metal sign shell, the halo forms by reflection off the base face, and the sign has to stand off the base for that to happen. For an exposed, ground-level sign we usually recommend the Common model for its better weather resistance. See the point-by-point comparison in Compare below.

Luxury model

• Opal acrylic back-panel partly exposed, with a stronger halo
• Mounts flush against the base face by default, or off the face on stainless steel tube spacers
• Suits premium storefronts and brand walls

View Luxury Model

Common model

• Opal acrylic back-panel hidden inside the metal sign shell
• Must mount off the base face, on 13/16 in (20 mm) stainless steel tube spacers by default
• Suits storefronts, large signs, curved walls, and outdoor sites

View Common Model

Installation and electrical

Backlit monument signs FAQ notes

Do you build the monument base and foundation too?

No. We build the illuminated part, the metal letters and logos, and your local contractor builds the base and footing in stone, brick, metal, or concrete. We include the mounting pattern, the studs, and the wiring diagram, so the letters and logos drop onto the finished base and line up.

How do the letters and logos attach to the base?

They mount to the base face with the studs and pattern we supply. The Luxury model mounts flush against the face by default, and the Common model stands off the face on 13/16 in (20 mm) stainless steel tube spacers so the halo can form, with the cabling routed up through the base to the power supply. Your contractor pre-sets the stud holes from our 1:1 template.

Will a monument sign survive sprinklers, road salt, and weather?

Yes. Ground level gets 304 stainless steel by default and marine-grade 316, mounting hardware included, on coastal or salted-roadside sites. Outdoors, the LEDs are waterproof by default, and in rainy regions we upgrade them to IP67 and plan drainage holes at the bottom of the metal sign shells, plus edge detailing against light leaks. Tell us if it is rainy, freezing, or coastal, and we build the sealing and drainage around it.

Letters, a logo, or both?

Either or both. Letters and logos are both built as metal sign shells with LEDs inside. Both throw a halo and take your brand finish and light color. Large logos run in aluminum on the Common model to cut weight, and inside large logos, we set reinforcing ribs to the logo shape to keep the faces flat and prevent oil canning.

Do you also make matching building or name signs?

Yes. For letters high on the building see backlit building facade signs, for a church name see backlit church name signs, and for standalone lit letters see LED backlit letters, so the whole entrance signage set matches.
